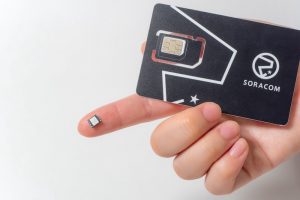

Soracom eSIM, with standard SIM card for scale
← Back to store

SORACOM Air embedded SIM SAMPLES (plan01s) 10 SIM pack, SGEIL01

$99.00 USD


General Specifications

For additional information, please see the SORACOM Air eSIM (plan01s) Datasheet.

  • Formfactor

    MFF2 (Industrial Grade)

  • Application



  • Temperature Change

    -40°C to +105°C (operation)
    -40°C to 125°C (storage)

  • Supply Voltage

    1.62V to 3.3V (Class B/C)

  • Non-Volatile Memory

    Memory per profile Dynamic Memory Allocation.
    Up to 400 kilobytes NVM (non-volatile memory) available.
    NVM Endurance: Up to 500,000 Cycles/page @ 105°C, Max. Cycling: 16 million per 8

  • Data Retention

    Up to 15 years at 85°C

  • Other

    Common Criteria EAL5+
    Ruggedized Form Factor MFF2: TB-MA-HA-CA-VA-SA-RA-UB
    ROHS compliance

  • SIM

    2 x external SIM holder


  • Java Card™

    3.0.4 CE

  • Java Card™ Cryptographic APIs

    CRC16, CRC32
    DES, 3DES
    AES 128/256 bits
    RSA up to 2048 bits
    SHA-1, SHA-2, SHA-3
    ECC 128/256

  • OTA

    OTA over SMS (SCP80)
    OTA over HTTPs: Global Platform 2.2 amendment B (SCP81)

  • Other

    Global Platform 2.2.1
    Amendment A: Controlling Authority Scenario 2b
    Amendment C: Dynamic Memory Allocation
    Amendment D: SCP03 support
    Amendment E/F: Scenario 3
