Description

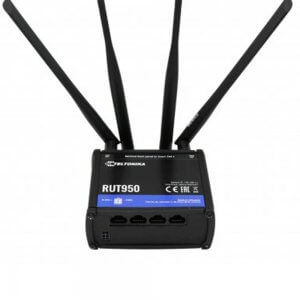

A professional, industrial 4G LTE cellular router for IoT applications, delivering high performance cellular communication in harsh and wide operating temperature range environments. Ensure your business continuity with Dual-SIM and 4G failover. Also available at Amazon.com.
Features
- LTE Cat 4 with speeds up to 150 Mbps
- WAN failover – automatic switch to available backup connection
- Wireless Access Point with Hotspot functionality
- Dual SIM – significantly reduces roaming costs
- 4x Ethernet ports with VLAN functionality
- Teltonika Remote Management System compatible
Contact Us
info@soracom.io
Technical Specification
For additional information, please see the Teltonika RUT950 LTE Cat4 Router product description document.
Hardware
- Mobile
4G (LTE) – Cat 4 DL up to 150 Mbps, UL up to 50 Mbps; DC-HSPA+; UMTS; TD-SCDMA; EDGE; GPRS
- Ethernet
4 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN ports
- Power Supply
9 – 30 VDC, 4 pin DC connector
- Input/Output
1 x Digital Input, 1 x Digital Open Collector Output on power connector
- Connectors
1 x 4 pin DC, 4 x Ethernet, 2 x Mobile SMA, 2 x WiFi RP-SMA
- SIM
2 x external SIM holder
- Dimensions
100 mm x 110 mm x 50 mm
Software
- Operating System
RutOS (OpenWrt based Linux OS)
- Networking Protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DHCP, DNS, HTTP, HTTPS, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, Telnet, SNMP
- Network Features
NAT, Static/Dynamic routing, Firewall, OpenVPN, IPsec, H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Authentication
Pre-shared key, digital certificates, X.509 certificates
- Monitoring & Management
WEB UI, SSH, SMS, SNMP, JSON-RPC, FOTA, RMS
