Featuring high-performance RF, antenna, and power supply design, this AT&T® certified LTE Cat M1 USB modem is the right choice for many M2M and IoT product designs.
The modem’s extensive certifications dramatically lower the costs, time to market, and risk associated with incorporating a cellular modem module into your device. LTE Cat M1 capability helps assure long-term “future proof” compatibility with the AT&T cellular network.
Zoomtel 4650 Features
- Includes Quectel® modules with high performance and guaranteed availability for many years
- Flexible power handling – supplied by the primary USB port

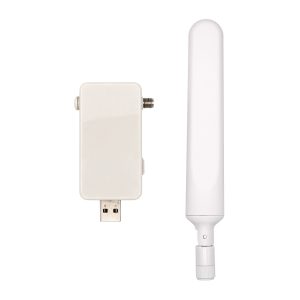

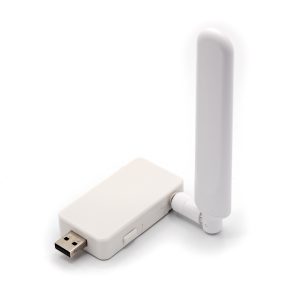

- SMA and U.FL antenna options allow fixed or moveable antennas
- Works with Linux, Mac, Windows, and Raspberry Pi devices
- Operating free-air temperature: -30° to 60° C
- Built-in Protocol Stack – transparent and non-transparent TCP/UDP client and server
- Built-in SIM connector with auto-detect feature
- On-board Java can execute from non-volatile memory
- Two LEDs
- Flexible USB modem mounting – plugs directly into the USB port or indirectly via USB cable
Any questions?
If you’d like to learn more about the Zoomtel 4650, our team of IoT experts would love to hear from you! You can contact us here.
Technical Specification
Module
Quectel BG96
Carrier Certification
AT&T, PTCRB (Module & Device), GCF-certified module
Antenna Option
SMA
Maximum speed
375 kbps DL / 375 kbps UL
Compliance
FCC Part 15B, 15C (Module), ISED, US/CA ITE Safety, CE
Supplemental Power Connector
USB Micro-B receptacle
Frequency Bands
B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28/B39
Dimensions (including SMA and USB connectors)
80.9 mm L x 43.4 mm W x 15 mm
For additional information, please see the Zoomtel LTE Cat M1 USB modem product description document.
