Description

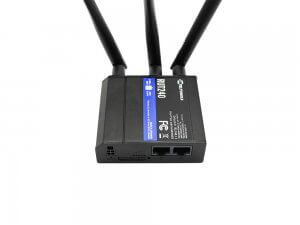

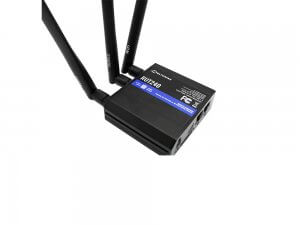

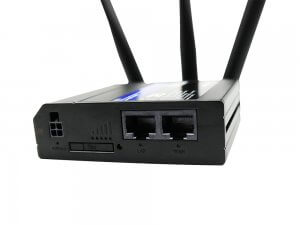

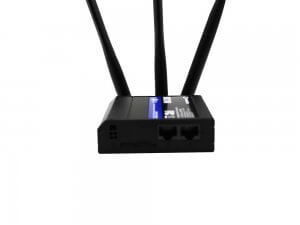

RUT240 is a compact, cost-effective 4G/LTE Wi-Fi router for IoT and M2M applications. This mobile router delivers high performance for mission-critical cellular communication in harsh and hazardous environments. Great for quick deployment in mission critical IoT applications where advanced Networking, VPN and security features are needed. Also available at Amazon.com.
Features
- LTE Cat 4 with speeds up to 150 Mbps
- WAN failover – automatic switching to available backup connection
- Wireless Access Point with Hotspot functionality
Compact size, easy integration
- Digital Input/Output for remote monitoring and control
- Teltonika Remote Management System compatible
Contact Us
info@soracom.io
Technical Specification
For additional information, please see the Teltonika RUT240 LTE Cat4 Router product description document.
Hardware
- Mobile
4G (LTE) – Cat 4 DL up to 150 Mbps, UL up to 50Mbps; DC-HSPA+; UMTS; TD-SCDMA; EDGE; GPRS
- Ethernet
2 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 1 x LAN
- Power Supply
9 – 30 VDC, 4 pin DC connector
- Input/Output
1 x Digital Input, 1 x Digital Open Collector Output on power connector
- Connectors
1 x 4 pin DC, 2 x Ethernet, 2 x Mobile SMA, 1 x WiFi RP-SMA
- SIM
1 x external SIM holder
- Dimensions
83 mm x 74 mm x 25 mm
Software
- Operating System
RutOS (OpenWrt based Linux OS)
- Networking Protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DHCP, DNS, HTTP, HTTPS, SSL v3, TLS, ARP, PPPoE, UPNP, SSH, Telnet, SNMP
- Network Features
NAT, Static/Dynamic routing, Firewall, OpenVPN, IPsec, H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Authentication
Pre-shared key, digital certificates, X.509 certificates
- Monitoring & Management
WEB UI, SSH, SMS, SNMP, JSON-RPC, FOTA, RMS
