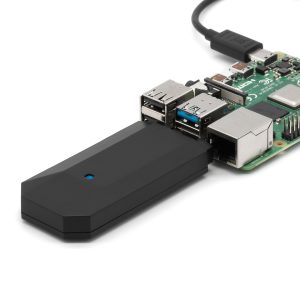

Soracom Onyx connected to board
← Back to store

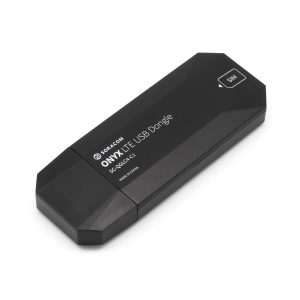

SORACOM Onyx Dongle SC-QGLC4-C1

$79.90 USD

SORACOM original LTE Cat.4 USB dongle with global band coverage. Regular pricing at 89.90 USD.

Type


Newly launched Onyx LTE USB dongle available for

$89.90 $79.90

the offer ends on December 25th.



SORACOM Onyx LTE USB dongle is a cellular modem providing connectivity on LTE Cat.4 / 3G / 2G networks. It is proven and works smoothly with SORACOM IoT SIM and various SORACOM platform services. The device is suitable for different M2M/IoT applications including smart agriculture, healthcare, tracking and remote management applications.

The device works on Windows/Linux/Android hosts. No driver installation necessary for most Linux system.

The dongle integrates modem and antenna, powered by the host USB port. Which means no extra accessories nor power supply are required to get the host device online. Two CRC9 connectors also allow external antenna connection. In a bad radio environment, you may extend out cables and place antennas away from the host device for better connectivity.

The device satisfies all network & RF requirements for cellular connectivity by itself, which makes it radio-certified as an end product. Therefore with this dongle, you can avoid getting additional radio certifications and immediately deploy your IoT system on field.

The embedded modem features global LTE band coverage and various radio certifications, which means this single SKU + our global SIM can provide connectivity almost anywhere in the world, without having to modify the system. Please note the end product certification is limited to FCC/TELEC/PTCRB/CE*. Depending on the usage & region, you may need additional certification as an end product.

Built-in protocol stack supports TCP/UDP (client/server), HTTP, MQTT and others. With these built-in stack, the dongle allows host devices with limited capabilities to communicate with various applications.

*certification in progress

Features

  • Global LTE band coverage
  • Smooth SORACOM SIM & platform experience
  • LTE Cat.4 / 3G / 2G support
  • Built-in antenna and external antenna connectors
  • Built-in application protocols
  • Works with Windows/Linux/Android host devices

Technical Specifications

SC-QGLC4-C1
Connectivity Modem Quectel EG25-G
Region Global
Performance LTE Cat.4 (3GPP Release 11)
Network Bands 4G LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
LTE-TDD B38/B39/B40/B41
3G UMTS B1/B2/B4/B5/B6/B8/B19
2G GSM 850/900/1800/1900
Packet Data Max. 150Mbps downlink / Max. 50Mbps uplink
Application Compatibility 3GPP TS 27.007, TS 27.005, Enhanced AT Commands
Protocols TCP,UDP,PPP,FTP,HTTP,MQTT,NTP,NITZ,PING,QMI
Messaging SMS,USSD
Operating Systems Windows 7/8/8.1/10, Linux 2.6 ~ 5.4, Android 4.x/5.x/6.x/7.x/9.x
Interfaces USB USB 2.0 Type A
SIM Nano SIM (4FF)
Antenna Built-in, 2 x CRC9
Power Operating Voltage USB powered, 4.2V – 6.0V
Power Consumption 35mA(idle,typical), 600mA (during communication, typical)
Physical Dimensions 95mm x 36mm x 13mm
Weight 36g
Casing PC-ABS
Temperature Range -20°c – 60°c (operation), -35°c – 85°c (storage)
Humidity 5% – 75% (operation, non-condensing), Max 80% (storage, non-condensing)
Certs Regulatory FCC,PTCRB,JATE,TELEC, CE (certification in progress)
Safety RoHS
